TU5J4 Conrod

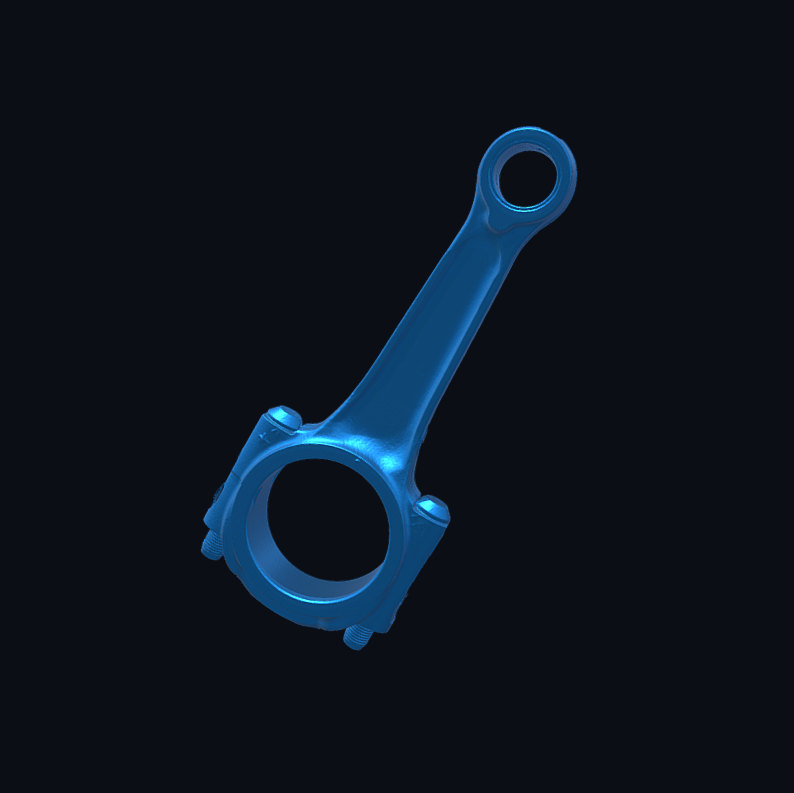

OEM-style connecting rod originally fitted to the 1.6L 16V TU5J4 engine found in the Peugeot 106 GTI and Citroën Saxo VTS platforms. This 3D scan is specifically designed for engine builders, fabricators, and DIY engineers who need an accurate 3D spatial reference to design custom aftermarket conrods, check block clearance, or model upgraded rotating assemblies in CAD.

Critical Dimensions Center-to-Center (Eye to Eye) Length: 133.5 mm

Big End Diameter: 48.66 mm

Small End Diameter: 19.46 mm

This specific rod is equipped with aftermarket press-in ARP2000 Rod bolts and not the original ones.

Ideal Applications

• Custom Rod & Engine Design:
  Reference the beam structure, pin boss, and journal geometry to design custom H-beam or I-beam forged connecting rods.


• Block & Counterweight Clearance Checks:
  Evaluate rotating assembly clearance against the engine block internal webbing, cylinder skirts, and oil spray jets in 3D CAD.
•

• 3D Printing & Prototyping:
• Print 1:1 scale mock-ups to test physical fitment with pistons and crankshaft journals before expensive CNC machining.

Licensing & Usage Terms

• Personal Use License: Non-exclusive license for private projects, one-off custom fabrications, and personal R&D.

• Commercial Use License: Required if using this scan data to produce commercial components or kits intended for resale.

• Redistribution Prohibited: Re-selling, sharing, or publicly distributing the .STL file or derivatives thereof is strictly prohibited regardless of license type.

•


⚠️ Disclaimer & Fitment Notice

Spatial & Partial Data Reference Only: This 3D scan is a partial dataset of a physical steering pump captured in its as-manufactured state. Due to casting variations, production revisions, and minor wear on reference parts, all critical mounting hole centerlines, thread pitches, and port dimensions must be physically verified prior to final CNC machining or component production.

Power steering systems are safety-critical. Structural and fluid-system evaluations remain the sole responsibility of the builder/engineer. The seller assumes no liability for components or bracketry fabricated using this reference data.

Disclaimer: All brand names, trade names, or vehicle model designations (such as Peugeot, Citroën, 106, Saxo) are used purely for compatible vehicle and chassis identification purposes. This product is an independent aftermarket digital reference file and is not manufactured, endorsed, or affiliated with Stellantis N.V. or its subsidiaries.
