MR-2 ZZW30 Rear knuckle

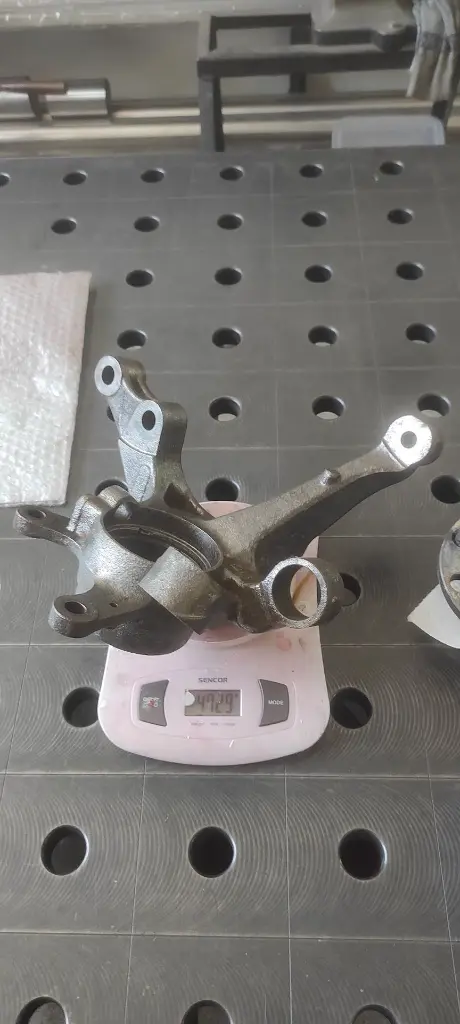

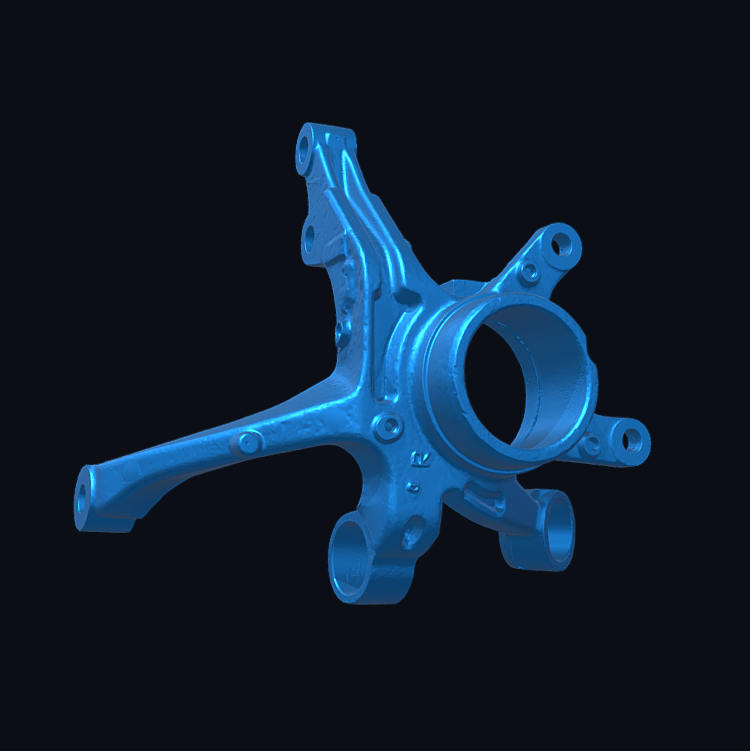

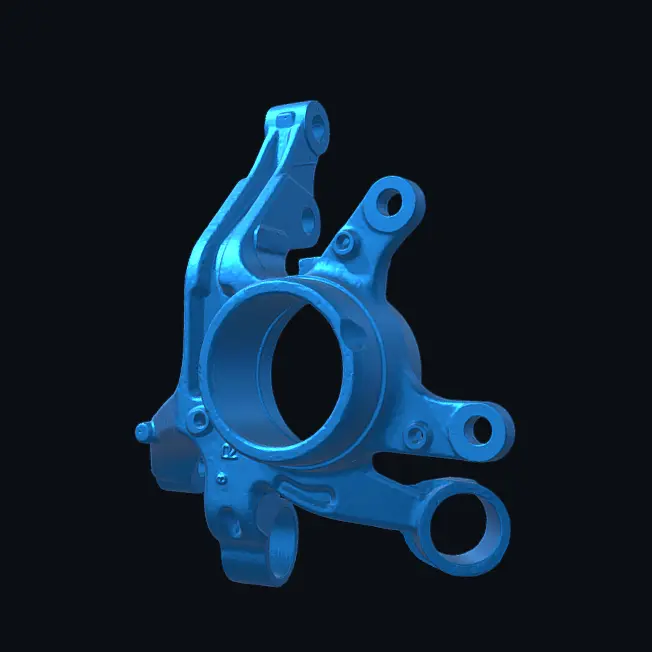

OEM-style right-hand rear suspension knuckle originally fitted to the Toyota MR2 Roadster / MR-S (ZZW30 platform). This 3D scan provides an accurate spatial reference of the factory upright casting, capturing critical hardpoints for race engineers, fabricators, and chassis builders to design custom suspension geometry, brake conversions, or tubular rear end setups in CAD.

Format: .STL
Scanned by: SYBA Garage
Instagram: @syba.garage

Ideal Applications

• Custom Suspension Geometry & Kinematics:
  Reference exact pickup point coordinates, hub centerlines, and strut mounting bosses to design custom control arms, toe links, or evaluate rear roll center and bump-steer characteristics.
•

• Brake & Hub Conversions:
  Design custom caliper adapter brackets or model upgraded hub and bearing assemblies directly against the OEM mounting faces.


• 3D Printing & Prototyping:
• Print 1:1 scale mock-ups to test fitment of custom brackets, spherical bearings, or aftermarket brake setups before committing to final CNC machining.



Licensing & Usage Terms

By purchasing and downloading this file, you agree to the following terms:

• Personal use License:

• You are granted a non-exclusive license to use this 3D scan data for private projects, one-off custom fabrications, and personal R&D.

  Perfect if you need it for your project car!




• Commercial use License:

  If you intend to use this scan data to produce commercial components for sale, please select our Commercial License option.




• Redistribution Prohibited:

  Re-selling, sharing, or publicly distributing the .STL file or derivatives thereof is strictly prohibited regardless of the license.



⚠️ Disclaimer & Fitment Notice

Spatial Reference Only: This 3D scan represents a physical gearbox casing captured in its as-manufactured state. Due to factory casting tolerances, wear on used casings, and potential warping over time, all critical bellhousing bolt patterns, shaft centerlines, and mounting threads must be physically measured and verified by the fabricator prior to final manufacturing or CNC machining.

Structural and mechanical engineering checks remain the sole responsibility of the fabricator. The seller assumes no liability for components or mounts fabricated using this reference data.

Disclaimer: All brand names, trade names, or vehicle model designations (such as Toyota, MR-2 and ZZW30) are used purely for compatible vehicle and drivetrain identification purposes. This product is an independent aftermarket digital reference file and is not manufactured, endorsed, or affiliated with Toyota or its subsidiaries.
